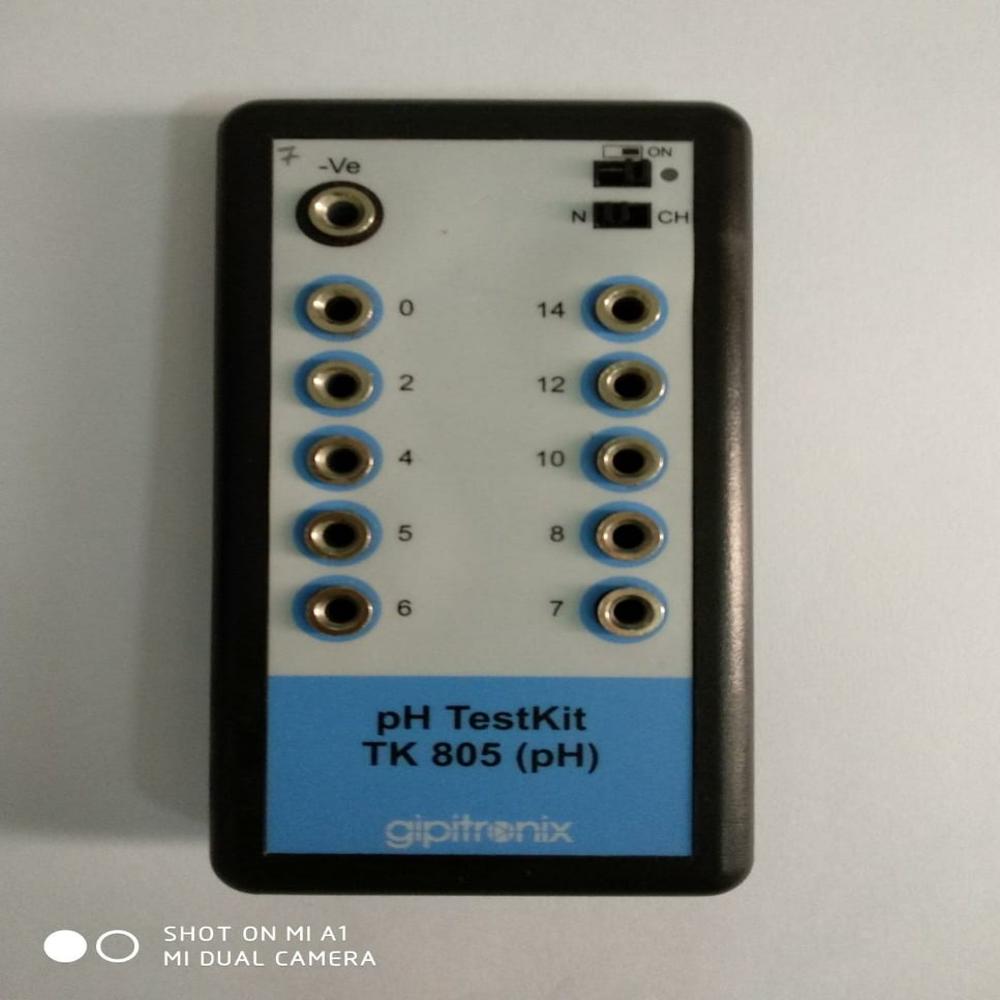

PH Calibrator

Name: PH Calibrator
Brand: GIPITRONIX PVT. LTD.
Price: 5000.0 INR
Availability: InStock

Price 5000.0 INR/ Set

Get a Price/Quote

MOQ : 1 Set

PH Calibrator Specification

Equipment Type
Electronic PH Calibrator / Simulator

Display Type
No display; Output through connector terminals

Features
Portable, lightweight, multi-point calibration

Power Supply
Battery operated (typically 9V battery, standard for handheld kits)

Operating Voltage
9V DC (Battery)

Port Size
Standard 3.5mm audio jacks (14 test terminals, 1 common)

Number of Specimens
14 simultaneous outputs

Interface Type
3.5mm mono jack sockets

Resolution
1 pH (discrete outputs)

Test Range
pH 0 to 14 (discrete calibrator levels - 0, 2, 4, 5, 6, 7, 8, 10, 12, 14)

Response Time
Instantaneous (upon connection)

Application
Calibration of pH meters and pH transmitters, Laboratory & industrial use

Measuring Range
pH 0 to 14

Accuracy
Typically 0.05 pH (common for standard electronic simulators)

Automation Grade
Manual

Mounting Type
Handheld/portable

Usage
Test/Laboratory/Field calibration

Control Mode
Manual Switch (ON/N/CH selector on device)

Dimensions
Approx. 120mm x 65mm x 25mm

Model Name/Number
TK 805 (pH)

Number of Output Terminals
15 (1 common, 14 calibration points)

Case Material
ABS plastic

Switch Type
Rotary and DIP switch for mode selection

Output Type
Discrete analog voltage corresponding to pH values

Color
Black/White body with blue label

PH Calibrator About

Unlock exceptional precision with the TK 805 (pH) PH Calibrator-now available at a clearance sale for professionals who value virtuoso accuracy. This crackerjack device is crafted for noteworthy manual calibration of laboratory and industrial pH meters, offering discrete analog voltage outputs across 14 calibration points (pH 0-14). Housed in a durable ABS case, its rotary and DIP switch modes enable swift, reliable selection. With a lightweight, portable design and a battery-powered setup, order now to elevate your calibration process efficiently and affordably.

Versatile Solution for Reliable pH Calibration

The TK 805 PH Calibrator is widely used for calibrating laboratory and field pH meters and transmitters. Its specific usage includes quick multi-point verification using discrete outputs for pH values from 0 to 14. The main advantage is its manual control and portability, making it ideal for on-site calibration where convenience and accuracy are a must for quality testing and maintenance tasks.

Prompt Supply and Secure Delivery

Our PH Calibrator is shipped quickly nationwide, with strong supply ability ensured for timely demand fulfillment. Each unit is handovered in secure, tamper-proof packaging to safeguard the instrument during transport. We focus on neat packaging details, ensuring safe arrival at your facility. Our main domestic market covers laboratories, research institutes, and industrial plants across India, guaranteeing reliable supply and prompt shipment.

FAQ's of PH Calibrator:

Q: How does the TK 805 PH Calibrator assist in laboratory and industrial calibration?

A: The TK 805 allows users to calibrate and verify the accuracy of pH meters and transmitters across 14 discrete pH values, ensuring measurement consistency in laboratory and industrial environments.

Q: What type of output does the calibrator provide for testing pH meters?

A: It delivers discrete analog voltage outputs corresponding to standard pH calibration points from 0 to 14 through 3.5mm mono jack terminals.

Q: Where can the TK 805 PH Calibrator be used?

A: This device is suitable for use in laboratories, industrial sites, research facilities, and fieldwork, thanks to its portable, battery-operated design.

Q: What process should be followed while using the calibrator?

A: Simply connect the pH meter or transmitter to the appropriate calibration point using the 3.5mm jack, select the mode using the rotary or DIP switch, and observe the meter's response for verification.

Q: What are the benefits of manual operation and handheld design?

A: Manual selection via switches provides straightforward, flexible control, while the portable case allows for convenient use in various locations without the need for external power.
